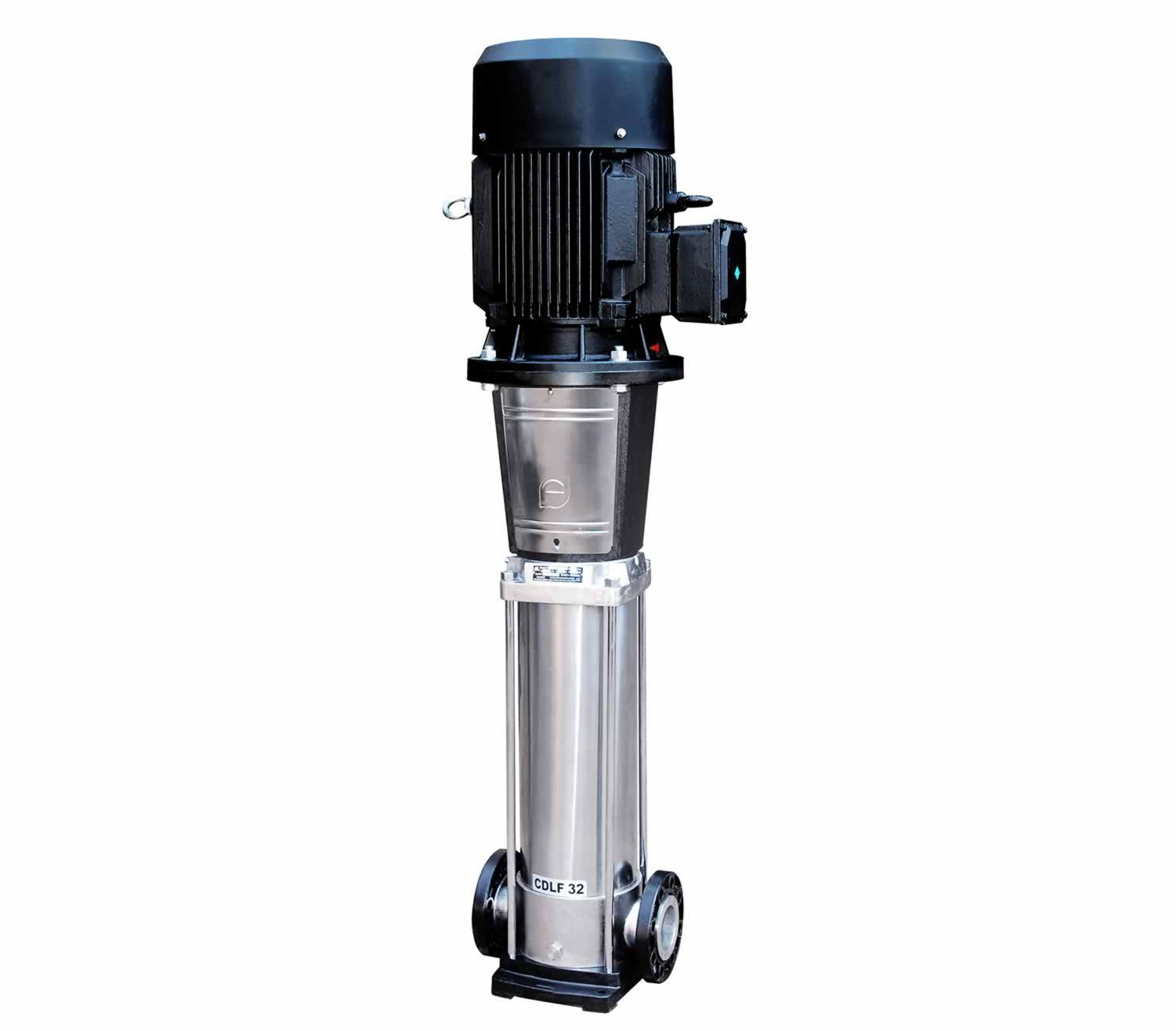

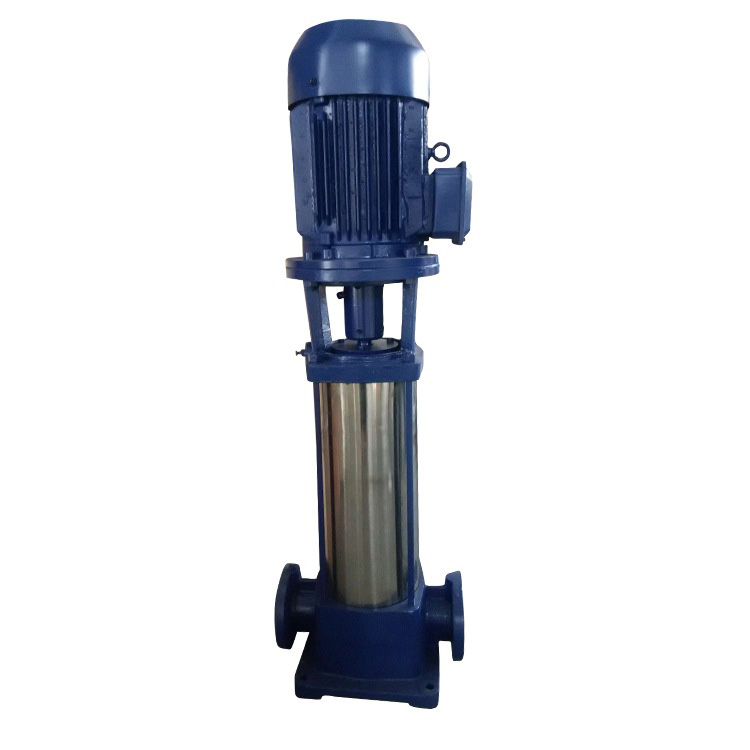

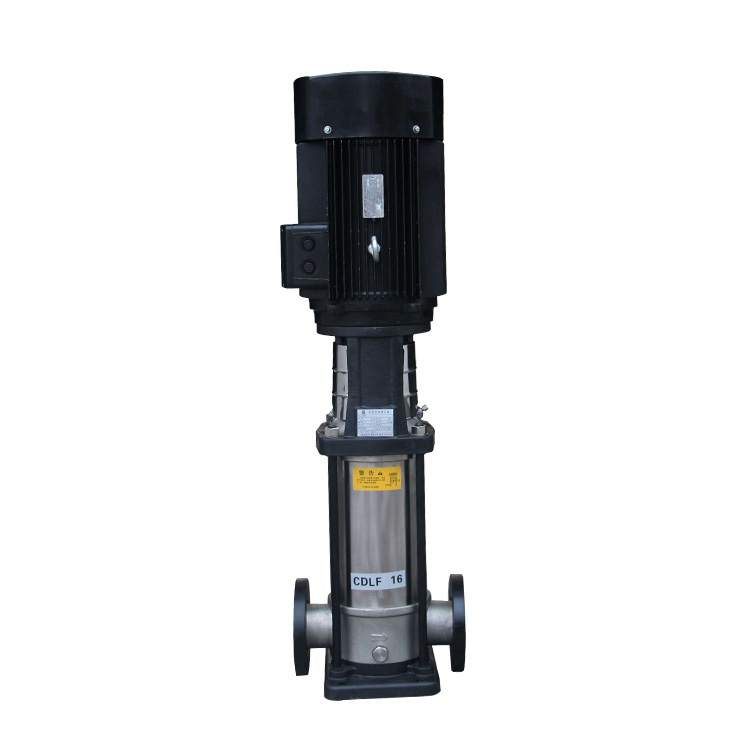

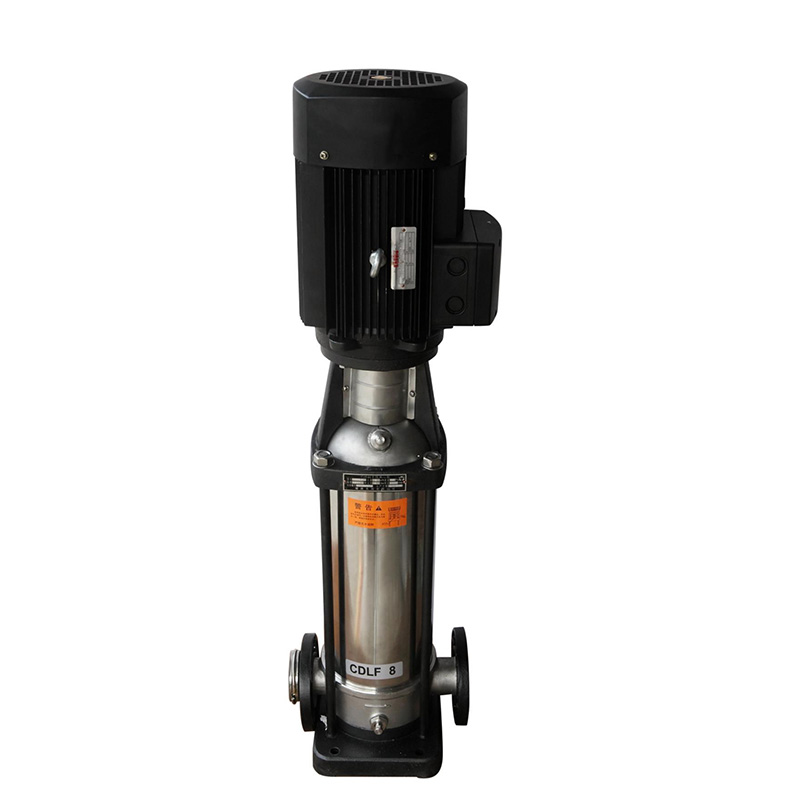

CDLF型不銹鋼立式多級泵
銷售熱線：021-66525777 63099652
產品分類:立式離心泵
口徑（進口/出口）:φ40-φ250(mm)
流量:4.2-504(m3/h)
正奧泵業優勢：知名度高，品質可靠，服務完善 現貨供應
各種材質、非常規產品皆可訂做
- 產品概述
- 選型參數
- 應用領域
- 型號意義
- 產品特點
產品概述
CDLF系列輕型不銹鋼立式多級離心泵（以下簡稱多級泵）是吸取了國內外技術而設計制造的非自吸立式多級離心泵，采用標準立式電機和快裝式機械密封，更換非常方便。 泵的過流部分均采用不銹鋼（304/316）材料制成，可適用于輕度腐蝕性介質。產品投放市場后、質量可靠、使用范圍廣等特點，深受廣大用戶的喜愛。 產品特征： 多級泵輸送介質：
稀薄、清潔、不含固體顆�；蚶w維的非易燃易爆介質。
諸如礦泉水、軟化水、純水、清油和其他輕化工介質。
泵主要材料為不銹鋼，可應用于抽送輕度腐蝕性介質。
應用領域
供水：水廠過濾與輸送、水廠分區送水、主管增壓、高層建筑增壓。
工業增壓：流程水系統、清洗系統、高壓沖洗系統、消防系統。
工業液體輸送：冷卻和空調系統、鍋爐給水和冷凝系統、機床配套、酸和堿。
水處理：超濾系統、反滲透系統、蒸餾系統、分離器、游泳池。
灌溉：農田灌溉、噴灌、滴灌。

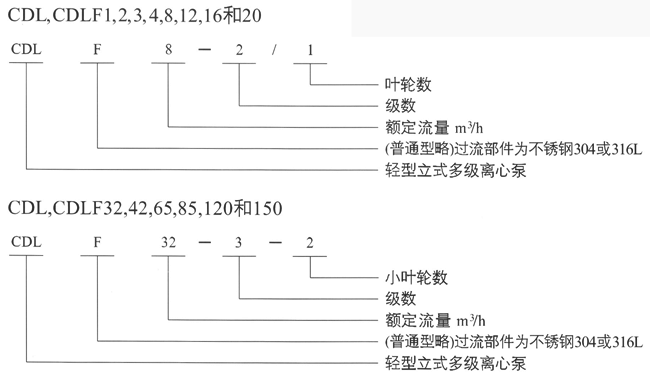

型號意義
運行條件
1、稀薄、干凈、非易燃易爆并不含固體顆�；蚶w維的液體。
2、l液體溫度：常溫型-15℃至+70℃
3、熱水型+70℃至+120℃
4、l環境溫度：最高+40℃
5、海拔：最高1000m
泵說明

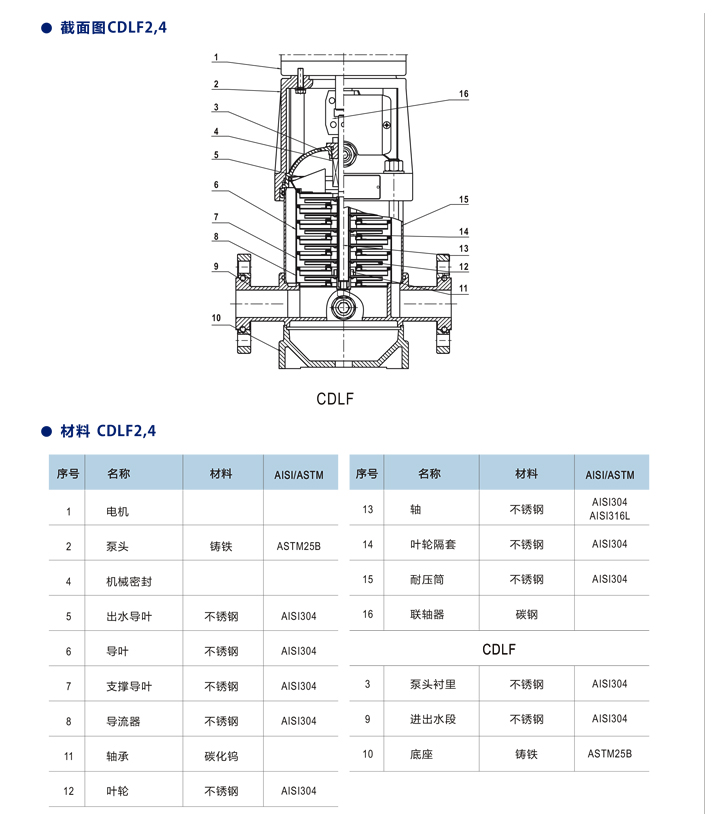

CDL/CDLF為安裝標準電機的非自吸式多級離心泵，電機軸通過泵頭用軸聯器直接與泵軸連接，拉桿螺栓將耐壓筒、過流部件固定在泵頭和進出水段之間，泵進出水口在泵底同一直線上；本泵可根據需要配置智能保護器，對泵干轉、缺相、過載等進行有效保護。
電機
1、電機為全封閉，風冷式二極標準電機。
2、l防護等級：IP55
3、l絕緣等級：F
4、標準電壓
50Hz：
1×220－230/240V
3×200－220/346－380V
3×220－240/380－415V
3×380－415V
60Hz：
3×200－230/346－400V
3×220－255/380－440V
3×220－227/380－480V
不銹鋼立式多級泵性能參數
| 型號 | 揚程 | 流量 | 電機功率 | 轉速 |
| （m） | （m3/h） | （KW） | （r/min） | |
| CDLF1-2 | 11.5 | 1 | 0.37 | 2900 |
| CDLF1-3 | 17 | 1 | 0.37 | 2900 |
| CDLF1-4 | 22.5 | 1 | 0.37 | 2900 |
| CDLF1-5 | 28 | 1 | 0.37 | 2900 |
| CDLF1-6 | 33.5 | 1 | 0.37 | 2900 |
| CDLF1-7 | 39 | 1 | 0.37 | 2900 |
| CDLF1-8 | 45 | 1 | 0.55 | 2900 |
| CDLF1-9 | 51 | 1 | 0.55 | 2900 |
| CDLF1-10 | 57 | 1 | 0.55 | 2900 |
| CDLF1-17 | 95 | 1 | 1.1 | 2900 |
| CDLF1-19 | 106 | 1 | 1.1 | 2900 |
| CDLF1-21 | 117 | 1 | 1.1 | 2900 |
| CDLF1-23 | 128 | 1 | 1.1 | 2900 |
| CDLF1-25 | 139 | 1 | 1.5 | 2900 |
| CDLF1-27 | 150 | 1 | 1.5 | 2900 |
| CDLF1-30 | 166 | 1 | 1.5 | 2900 |
| CDLF1-33 | 183 | 1 | 2.2 | 2900 |
| CDLF1-36 | 200 | 1 | 2.2 | 2900 |
| CDLF2-2 | 15 | 2 | 0.37 | 2900 |
| CDLF2-3 | 22 | 2 | 0.37 | 2900 |
| CDLF2-4 | 30 | 2 | 0.55 | 2900 |
| CDLF2-5 | 37 | 2 | 0.55 | 2900 |
| CDLF2-6 | 45 | 2 | 0.75 | 2900 |
| CDLF2-7 | 52 | 2 | 0.75 | 2900 |
| CDLF2-9 | 67 | 2 | 1.1 | 2900 |
| CDLF2-11 | 82 | 2 | 1.1 | 2900 |
| CDLF2-13 | 98 | 2 | 1.5 | 2900 |
| CDLF2-15 | 112 | 2 | 1.5 | 2900 |
| CDLF2-18 | 136 | 2 | 2.2 | 2900 |
| CDLF2-22 | 165 | 2 | 2.2 | 2900 |
| CDLF2-26 | 198 | 2 | 3.0 | 2900 |
| CDLF3-2 | 9 | 3 | 0.37 | 2900 |
| CDLF3-3 | 14 | 3 | 0.37 | 2900 |
| CDLF3-4 | 19 | 3 | 0.37 | 2900 |
| CDLF3-5 | 23 | 3 | 0.37 | 2900 |
| CDLF3-6 | 28 | 3 | 0.55 | 2900 |
| CDLF3-7 | 32 | 3 | 0.55 | 2900 |
| CDLF3-8 | 37 | 3 | 0.75 | 2900 |
| CDLF3-9 | 42 | 3 | 0.75 | 2900 |
| CDLF3-10 | 47 | 3 | 0.75 | 2900 |
| CDLF3-11 | 51 | 3 | 1.1 | 2900 |
| CDLF3-12 | 55 | 3 | 1.1 | 2900 |
| CDLF3-13 | 60 | 3 | 1.1 | 2900 |
| CDLF3-15 | 69 | 3 | 1.1 | 2900 |
| CDLF3-17 | 79 | 3 | 1.5 | 2900 |
| CDLF3-19 | 88 | 3 | 1.5 | 2900 |
| CDLF3-21 | 98 | 3 | 2.2 | 2900 |
| CDLF3-23 | 107 | 3 | 2.2 | 2900 |
| CDLF3-25 | 116 | 3 | 2.2 | 2900 |
| CDLF3-27 | 124 | 3 | 2.2 | 2900 |
| CDLF3-29 | 133 | 3 | 2.2 | 2900 |
| CDLF3-31 | 142 | 3 | 3 | 2900 |
| CDLF3-33 | 151 | 3 | 3 | 2900 |
| CDLF3-36 | 168 | 3 | 3 | 2900 |
| CDLF4-2 | 15 | 4 | 0.37 | 2900 |
| CDLF4-3 | 24 | 4 | 0.55 | 2900 |
| CDLF4-4 | 32 | 4 | 0.75 | 2900 |
| CDLF4-5 | 40 | 4 | 1.1 | 2900 |
| CDLF4-6 | 48 | 4 | 1.1 | 2900 |
| CDLF4-7 | 56 | 4 | 1.5 | 2900 |
| CDLF4-8 | 64 | 4 | 1.5 | 2900 |
| CDLF4-10 | 81 | 4 | 2.2 | 2900 |
| CDLF4-12 | 95 | 4 | 2.2 | 2900 |
| CDLF4-14 | 112 | 4 | 3 | 2900 |
| CDLF4-16 | 129 | 4 | 3 | 2900 |
| CDLF4-19 | 153 | 4 | 4 | 2900 |
| CDLF4-22 | 178 | 4 | 4 | 2900 |
| CDLF8-2/1 | 9 | 8 | 0.75 | 2900 |
| CDLF8-2 | 18 | 8 | 0.75 | 2900 |
| CDLF8-3 | 27 | 8 | 1.1 | 2900 |
| CDLF8-4 | 36 | 8 | 1.5 | 2900 |
| CDLF8-5 | 45 | 8 | 2.2 | 2900 |
| CDLF8-6 | 54 | 8 | 2.2 | 2900 |
| CDLF8-8 | 73 | 8 | 3.0 | 2900 |
| CDLF8-10 | 92 | 8 | 4.0 | 2900 |
| CDLF8-12 | 111 | 8 | 4.0 | 2900 |
| CDLF8-14 | 130 | 8 | 5.5 | 2900 |
| CDLF8-16 | 148 | 8 | 5.5 | 2900 |
| CDLF8-18 | 167 | 8 | 7.5 | 2900 |
| CDLF8-20 | 186 | 8 | 7.5 | 2900 |
| CDLF12-2 | 20 | 12 | 1.5 | 2900 |
| CDLF12-3 | 30 | 12 | 2.2 | 2900 |
| CDLF12-4 | 40 | 12 | 3 | 2900 |
| CDLF12-5 | 50 | 12 | 3 | 2900 |
| CDLF12-6 | 60 | 12 | 4 | 2900 |
| CDLF12-7 | 70 | 12 | 5.5 | 2900 |
| CDLF12-8 | 80 | 12 | 5.5 | 2900 |
| CDLF12-9 | 91 | 12 | 5.5 | 2900 |
| CDLF12-10 | 101 | 12 | 7.5 | 2900 |
| CDLF12-12 | 121 | 12 | 7.5 | 2900 |
| CDLF12-14 | 141 | 12 | 11 | 2900 |
| CDLF12-16 | 162 | 12 | 11 | 2900 |
| CDLF12-18 | 183 | 12 | 11 | 2900 |
| CDLF16-2 | 22 | 16 | 2.2 | 2900 |
| CDLF16-3 | 34 | 16 | 3.0 | 2900 |
| CDLF16-4 | 46 | 16 | 4.0 | 2900 |
| CDLF16-5 | 58 | 16 | 5.5 | 2900 |
| CDLF16-6 | 70 | 16 | 5.5 | 2900 |
| CDLF16-7 | 82 | 16 | 7.5 | 2900 |
| CDLF16-8 | 94 | 16 | 7.5 | 2900 |
| CDLF16-10 | 118 | 16 | 11 | 2900 |
| CDLF16-12 | 141 | 16 | 11 | 2900 |
| CDLF16-14 | 166 | 16 | 15 | 2900 |
| CDLF16-16 | 189 | 16 | 15 | 2900 |
| CDLF20-1 | 10 | 20 | 1.1 | 2900 |
| CDLF20-2 | 23 | 20 | 2.2 | 2900 |
| CDLF20-3 | 35 | 20 | 4.0 | 2900 |
| CDLF20-4 | 47 | 20 | 5.5 | 2900 |
| CDLF20-5 | 58 | 20 | 5.5 | 2900 |
| CDLF20-6 | 70 | 20 | 7.5 | 2900 |
| CDLF20-7 | 82 | 20 | 7.5 | 2900 |
| CDLF20-8 | 94 | 20 | 11 | 2900 |
| CDLF20-10 | 118 | 20 | 11 | 2900 |
| CDLF20-12 | 142 | 20 | 15 | 2900 |
| CDLF20-14 | 166 | 20 | 15 | 2900 |
| CDLF20-17 | 202 | 20 | 18.5 | 2900 |
| CDLF32-10-1 | 9 | 32 | 1.5 | 2900 |
| CDLF32-10 | 13 | 32 | 2.2 | 2900 |
| CDLF32-20-2 | 20 | 32 | 3.0 | 2900 |
| CDLF32-20 | 27 | 32 | 4.0 | 2900 |
| CDLF32-30-2 | 33 | 32 | 5.5 | 2900 |
| CDLF32-30 | 40 | 32 | 5.5 | 2900 |
| CDLF32-40-2 | 46 | 32 | 7.5 | 2900 |
| CDLF32-40 | 53 | 32 | 7.5 | 2900 |
| CDLF32-50-2 | 60 | 32 | 11 | 2900 |
| CDLF32-50 | 67 | 32 | 11 | 2900 |
| CDLF32-60-2 | 74 | 32 | 11 | 2900 |
| CDLF32-60 | 81 | 32 | 11 | 2900 |
| CDLF32-70-2 | 88 | 32 | 15 | 2900 |
| CDLF32-70 | 95 | 32 | 15 | 2900 |
| CDLF32-80-2 | 102 | 32 | 15 | 2900 |
| CDLF32-80 | 109 | 32 | 15 | 2900 |
| CDLF32-90-2 | 117 | 32 | 18.5 | 2900 |
| CDLF32-90 | 124 | 32 | 18.5 | 2900 |
| CDLF32-100-2 | 131 | 32 | 18.5 | 2900 |
| CDLF32-100 | 138 | 32 | 18.5 | 2900 |
| CDLF32-110-2 | 146 | 32 | 22 | 2900 |
| CDLF32-110 | 153 | 32 | 22 | 2900 |
| CDLF32-120-2 | 160 | 32 | 22 | 2900 |
| CDLF32-120 | 167 | 32 | 22 | 2900 |
| CDLF32-130-2 | 174 | 32 | 30 | 2900 |
| CDLF32-130 | 181 | 32 | 30 | 2900 |
| CDLF32-140-2 | 189 | 32 | 30 | 2900 |
| CDLF32-140 | 196 | 32 | 30 | 2900 |
| CDLF42-10-1 | 16 | 42 | 3.0 | 2900 |
| CDLF42-10 | 20 | 42 | 4.0 | 2900 |
| CDLF42-20-2 | 32 | 42 | 5.5 | 2900 |
| CDLF42-20 | 41 | 42 | 7.5 | 2900 |
| CDLF42-30-2 | 52 | 42 | 11 | 2900 |
| CDLF42-30 | 61 | 42 | 11 | 2900 |
| CDLF42-40-2 | 73 | 42 | 15 | 2900 |
| CDLF42-40 | 81 | 42 | 15 | 2900 |
| CDLF42-50-2 | 93 | 42 | 18.5 | 2900 |
| CDLF42-50 | 101 | 42 | 18.5 | 2900 |
| CDLF42-60-2 | 113 | 42 | 22 | 2900 |
| CDLF42-60 | 122 | 42 | 22 | 2900 |
| CDLF42-70-2 | 134 | 42 | 30 | 2900 |
| CDLF42-70 | 142 | 42 | 30 | 2900 |
| CDLF42-80-2 | 154 | 42 | 30 | 2900 |
| CDLF42-80 | 162 | 42 | 30 | 2900 |
| CDLF42-90-2 | 174 | 42 | 30 | 2900 |
| CDLF42-90 | 183 | 42 | 37 | 2900 |
| CDLF42-100-2 | 194 | 42 | 37 | 2900 |
| CDLFF42-100 | 203 | 42 | 37 | 2900 |
| CDLF42-110-2 | 217 | 42 | 45 | 2900 |
| CDLF42-110 | 225 | 42 | 45 | 2900 |
| CDLF42-120-2 | 238 | 42 | 45 | 2900 |
| CDLF42-120 | 247 | 42 | 45 | 2900 |
| CDLF42-130-2 | 259 | 42 | 45 | 2900 |
| CDLF65-10-1 | 13 | 65 | 4.0 | 2900 |
| CDLF65-10 | 20 | 65 | 5.5 | 2900 |
| CDLF65-20-2 | 26 | 65 | 7.5 | 2900 |
| CDLF65-20-1 | 33 | 65 | 11 | 2900 |
| CDLF65-20 | 40 | 65 | 11 | 2900 |
| CDLF65-30-2 | 46 | 65 | 15 | 2900 |
| CDLF65-30-1 | 53 | 65 | 15 | 2900 |
| CDLF65-30 | 60 | 65 | 18.5 | 2900 |
| CDLF65-40-2 | 66 | 65 | 18.5 | 2900 |
| CDLF65-40-1 | 73 | 65 | 22 | 2900 |
| CDLF65-40 | 80 | 65 | 22 | 2900 |
| CDLF65-50-2 | 88 | 65 | 30 | 2900 |
| CDLF65-50-1 | 95 | 65 | 30 | 2900 |
| CDLF65-50 | 102 | 65 | 30 | 2900 |
| CDLF65-60-2 | 110 | 65 | 30 | 2900 |
| CDLF65-60-1 | 117 | 65 | 37 | 2900 |
| CDLF65-60 | 124 | 65 | 37 | 2900 |
| CDLF65-70-2 | 132 | 65 | 37 | 2900 |
| CDLF65-70-1 | 139 | 65 | 37 | 2900 |
| CDLF65-70 | 146 | 65 | 45 | 2900 |
| CDLF65-80-2 | 154 | 65 | 45 | 2900 |
| CDLF65-80-1 | 161 | 65 | 45 | 2900 |
| CDLF85-10-1 | 14 | 85 | 5.5 | 2900 |
| CDLF85-10 | 20 | 85 | 7.5 | 2900 |
| CDLF85-20-2 | 30 | 85 | 11 | 2900 |
| CDLF85-20 | 41 | 85 | 15 | 2900 |
| CDLF85-30-2 | 52 | 85 | 18.5 | 2900 |
| CDLF85-30 | 64 | 85 | 22 | 2900 |
| CDLF85-40-2 | 75 | 85 | 30 | 2900 |
| CDLF85-40 | 86 | 85 | 30 | 2900 |
| CDLF85-50-2 | 98 | 85 | 37 | 2900 |
| CDLF85-50 | 110 | 85 | 37 | 2900 |
| CDLF85-60-2 | 122 | 85 | 45 | 2900 |
| CDLF85-60 | 134 | 85 | 45 | 2900 |
| CDLF120-10 | 18.5 | 120 | 11 | 2950 |
| CDLF120-20-1 | 34.5 | 120 | 18.5 | 2950 |
| CDLF120-20 | 40 | 120 | 22 | 2950 |
| CDLF120-30 | 61 | 120 | 30 | 2950 |
| CDLF120-40-1 | 76 | 120 | 37 | 2950 |
| CDLF120-50-1 | 97 | 120 | 45 | 2950 |
| CDLF120-60-1 | 118 | 120 | 55 | 2950 |
| CDLF120-70 | 145 | 120 | 75 | 2950 |
| CDLF150-10-1 | 12.5 | 150 | 11 | 2950 |
| CDLF150-10 | 18.5 | 150 | 15 | 2950 |
| CDLF150-20-1 | 35 | 150 | 22 | 2950 |
| CDLF150-30-2 | 49 | 150 | 30 | 2950 |
| CDLF150-30 | 63 | 150 | 37 | 2950 |
| CDLF150-40-1 | 77 | 150 | 45 | 2950 |
| CDLF150-50-2 | 92 | 150 | 55 | 2950 |
| CDLF150-60 | 130 | 150 | 75 | 2950 |
